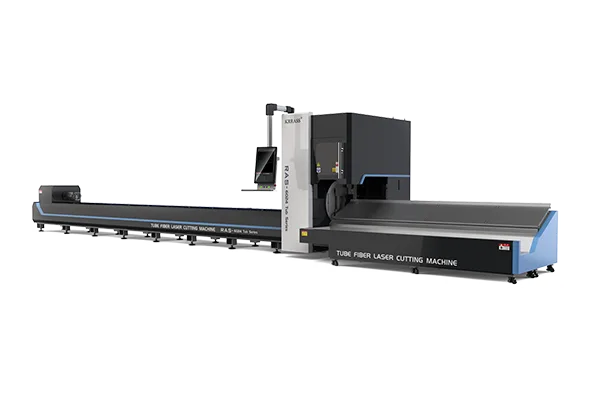

Tube Fiber Laser Cutting Machine

Tube Fiber Laser Cutting Machine

The machine can produce the following workpiece sizes:
6000 mm
Pipe size selection
Minimum diameter: 20mm
Maximum diameter: 170mm/220mm
Length: 3000mm/6000mm
Laser power: 1000W-4000W
Pneumatic chuck for higher precision.

Inquiry
  • Description

Technical Parameter

1070-1080mm

Laser wavelength

1000w-3000w

Laser power

60m/min

Complex-axis running speed

0.5G

Max. acc. speed

±0.03mm/m

Positioning accuracy

±0.03mm

Reposition accuracy

4850kg

Whole machine weight

9000*2100*2400mm

Machine dimensions

Standard Accessories

  • Laser Head : Raytools Manual focus
  • Servo Motor : Fuji Japan
  • Servo driver : Fuji Japan
  • Slideway : Hiwin TAIWAN
  • Rack : YYC TAIWAN
  • Gear :YYC TAIWAN
  • Reducer : Shimpo Japan
  • Control system : Cypcut FSCUT3000
  • Proportional valve : Japan SMC
  • Electrical : France Schneider

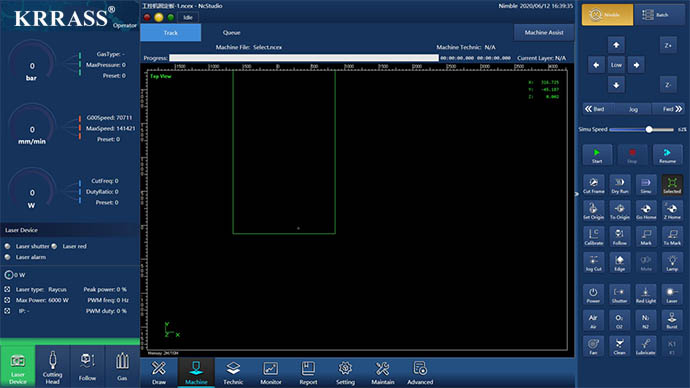

Cypcut FSCUT3000S Tube Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation.

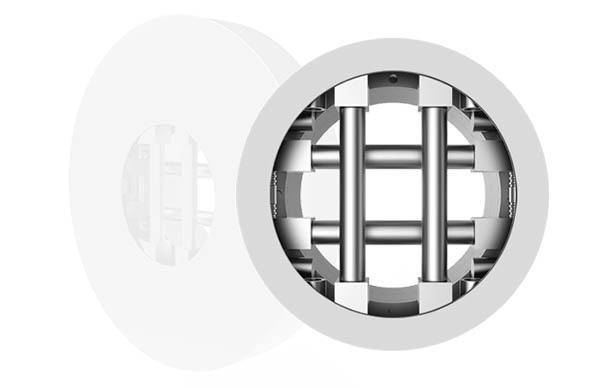

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

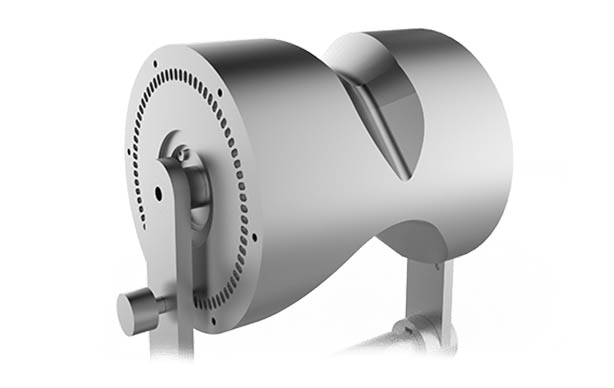

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

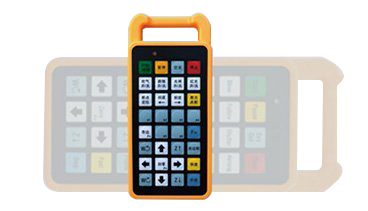

Easy to Operate

It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.

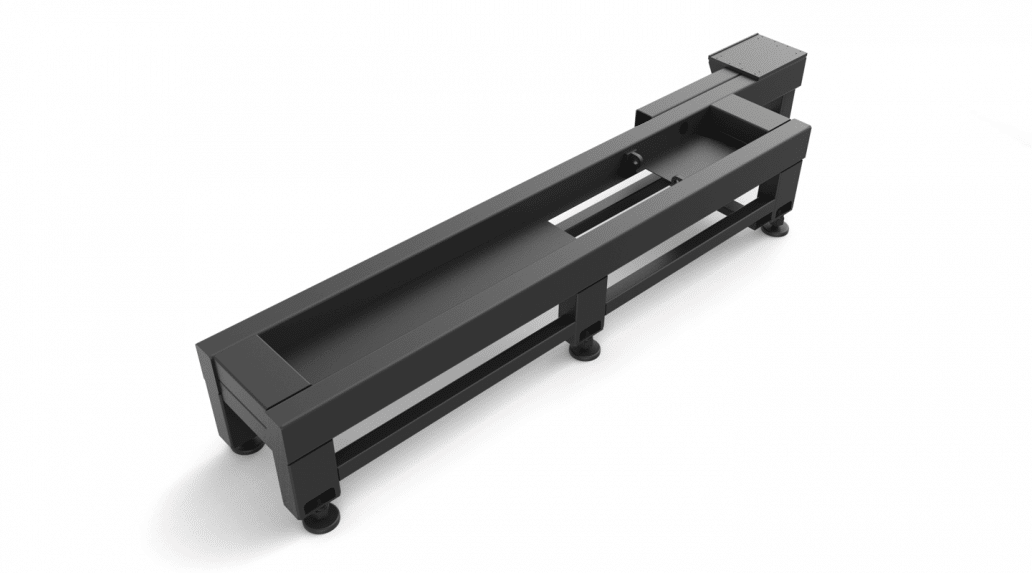

Machine Body

Adopts national standard square tube, 600 ℃ high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.

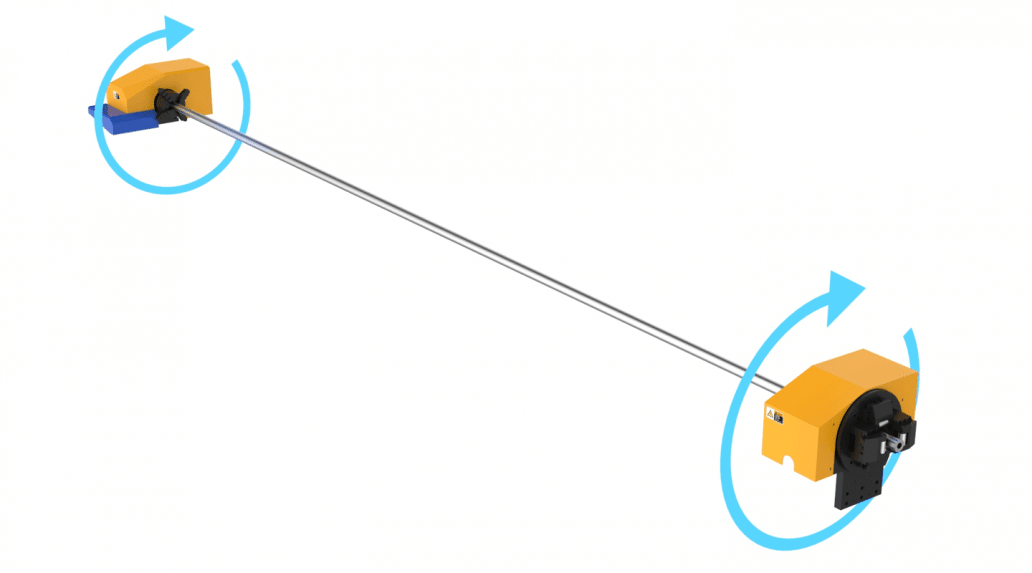

“DOUBLE-W” Rotation Cutting

“DOUBLE-W” rotation cutting 6-meter-long pipes is no longer limited to the slenderness ratio of 60:1.

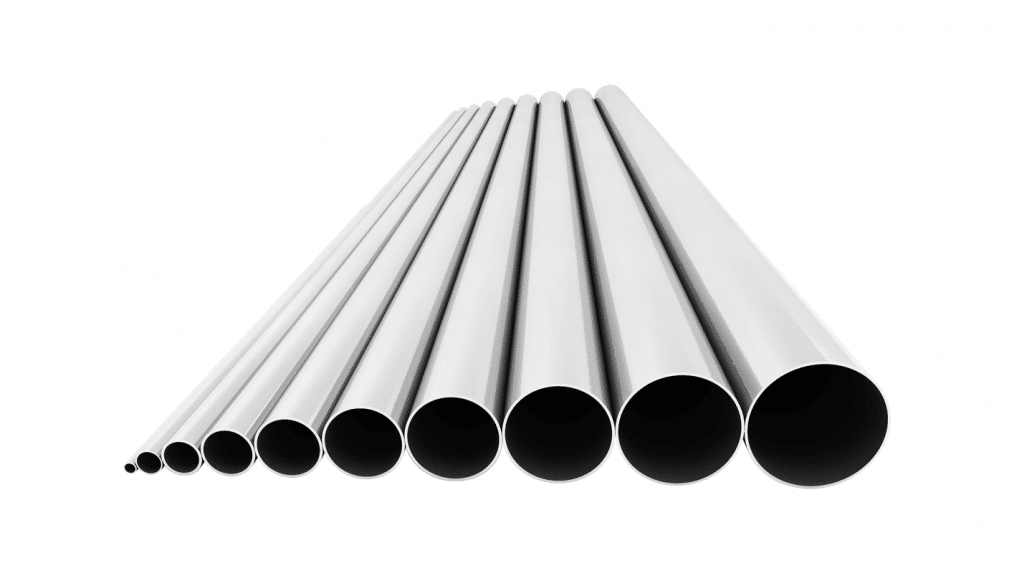

Tube Cutting Capacity

It used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

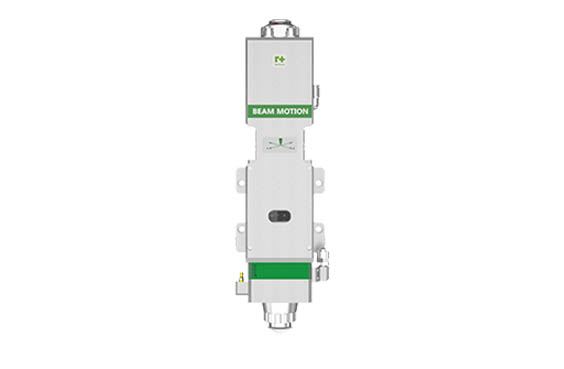

Raytools Laser Cutting Head

“DOUBLE-W” rotation cutting 6-meter-long pipes is no longer limited to the slenderness ratio of 60:1.

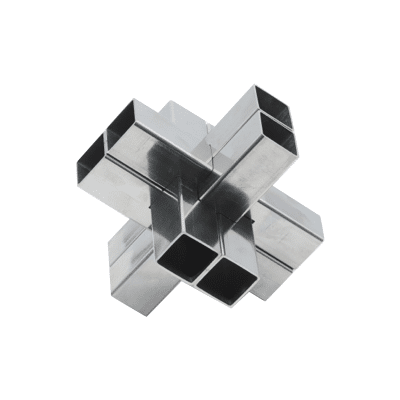

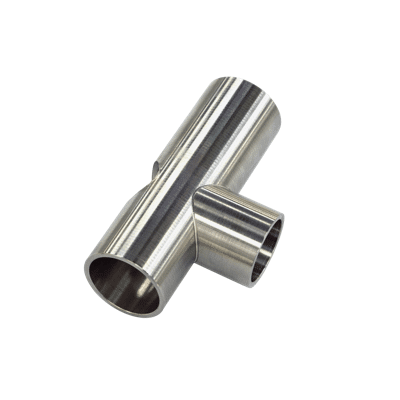

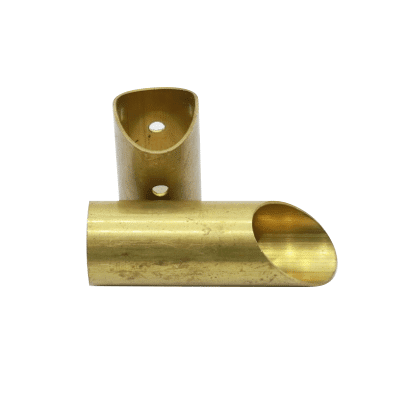

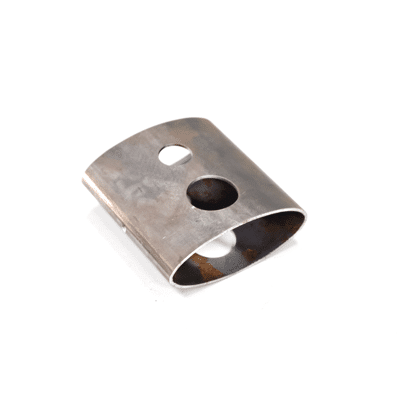

Cutting Samples

Tube Fiber Laser Cutting Machine Working Vedio
