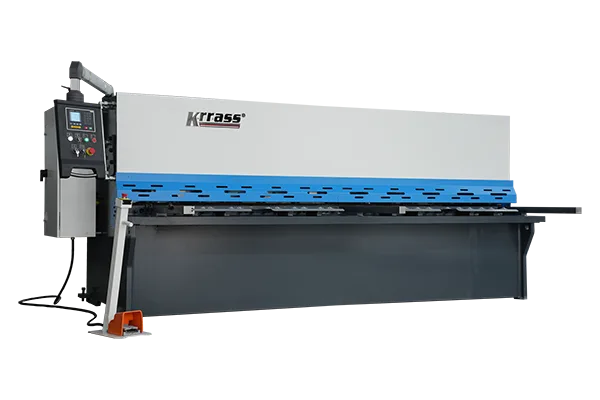

QC12K NC Hydraulic Swing Beam Shears

QC12K NC Hydraulic Swing Beam Shears

Model:QC12K Series
Imported Controller:E21S,E200P,P40
Capabilities:Max Thickness 40mm

Inquiry
  • Description

Main Features

  • Streamlined design originated from EU, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge and others. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;
  • Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving.

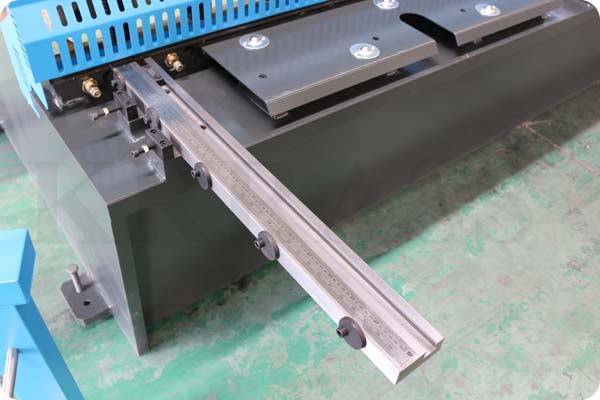

  • Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;
  • Simple and effective blade adjusting mechanism rearranges blade clearance by CNC system, improving the cutting quality.
  • Fine ball screw and polished rod structure, using good-performance frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.
  • Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.
  • Made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting;
  • With reference to ergonomic design, easy operation with CNC system surface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.

Standard Accessories

  • ESTUN E21S CNC controller
  • Backgauge X-axis electric control
  • DELTA frequency converter
  • Controller suspension arm and front material supporter
  • HIWIN ball screw and polished bar, control accuracy 0.05mm
  • Germany EMB tube connector

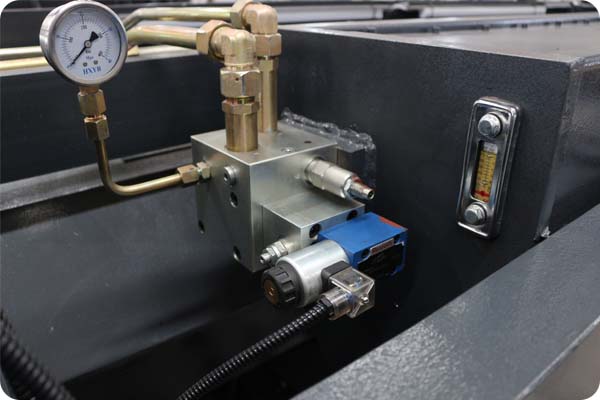

  • Germany Bosch Rexroth integrated hydraulic valve

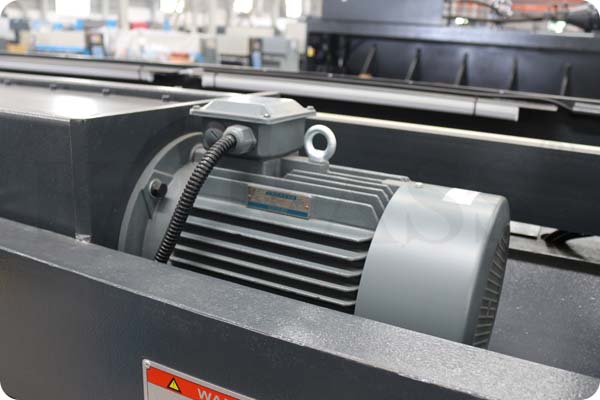

  • Germany Siemens main motor

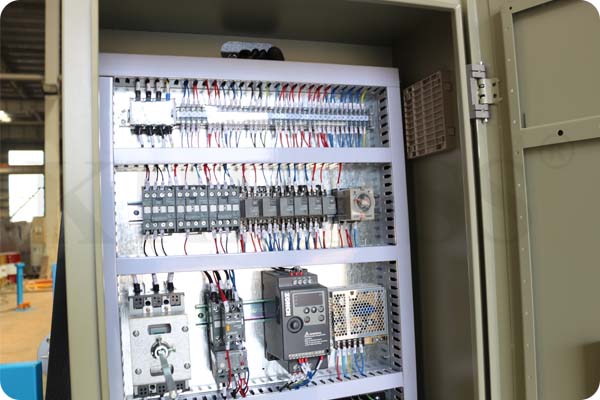

  • France Schneider electrics
  • Hydraulic and electrical overload protection
  • Light align
  • Blade materials (6CrW2Si)
  • South Korea KACON petal switch

Schneider Electrics - France

Siemens/Wannan Motor

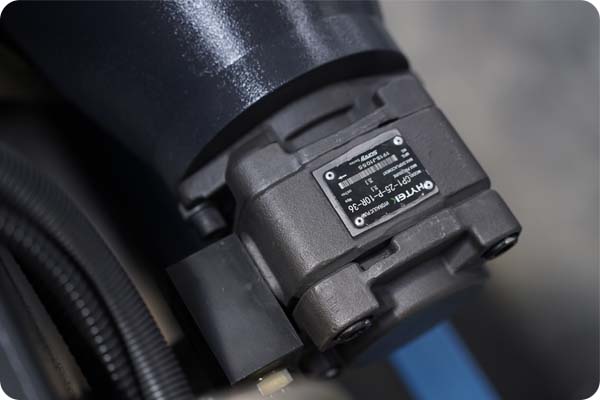

Sunny Oil Pump-GermanyUSA

Bosch Rexroth Valve -Germany

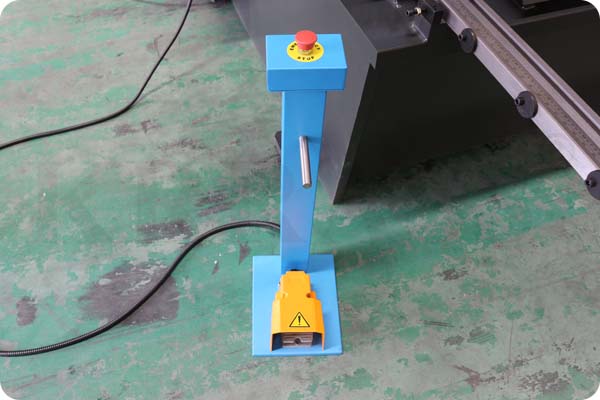

KRRASS Pedal switch

Working Table

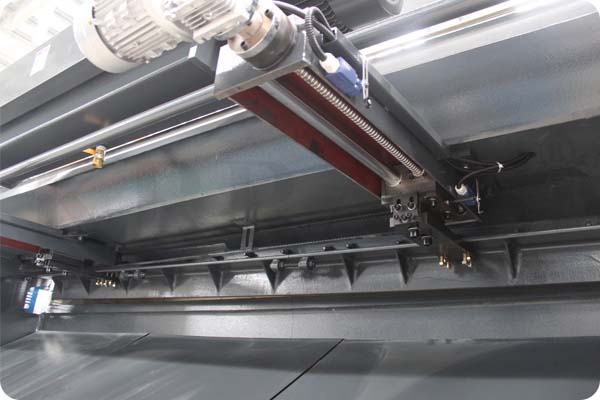

Backgauge use Ball Scrwe

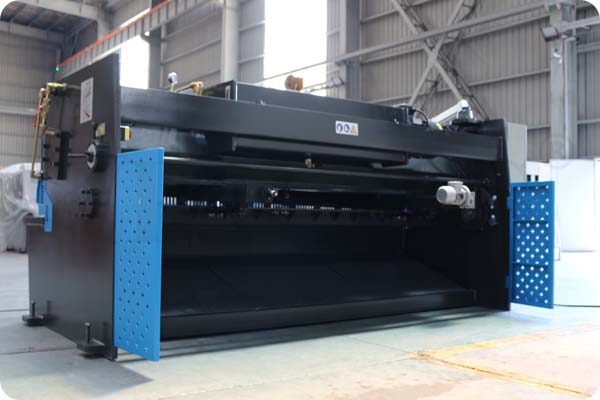

Back safety net

Estun E21S Controller For Hydraulic Shears

  • Wide, bright, colorful to program easily
  • Easy control pages
  • Bright LCD screen
  • Back / front gauge control
  • Retract function
  • Stroke length limitation
  • Manual movement of all axes
  • Sheet thickness measurement
  • Contextual help and warning pup-up
  • Complete part programming in seconds

Safety Standard

  • Safety standards ( 2006/42/EC )
  • The electrical cabinet and the front safeguard door open to power off
  • Domestic pedal switch (safety grade 4)
  • Rear metal safeguard rail, CE standard
  • Safety relay monitors pedal switch, safety protection

QC12K Hydraulic Swing Beam Shears

  • The host adopts the structure of QC12K series hydraulic  pendulum shears;
  • The numerical control system selects the economical numerical contral system dedicated to the shearing machine;
  • The back gauge screw use imported ball screw+linear guide.

Technical Parameter

Model  Max Cutting Thickness (mm) Max Cutting Length (mm) Throat Depth (mm) Angle-Cutting Range (°) Blade Length (mm) Cutting Speed (Cuts/min) Backgauge Specification Stroke (mm) Motor Power (Kw) Oil Tank Capacity (L) Length (mm) Width (mm) Height (mm) Weight (T)
4X2500 4 2500 100 1-3 2600 ≥15 600 5.5 220 3140 1640 1940 3.6
6X2500 6 2500 100 1-3 2600 ≥15 750 7.5 220 3140 1740 2040 4.2
6X3200 6 3200 100 1-3 3300 ≥15 750 7.5 290 3750 1770 2150 5.7
6X4000 6 4000 100 1-3 4100 ≥15 750 11 290 4830 1840 2150 8.5
8X2500 8 2500 100 1-3 2600 ≥15 750 11 220 3040 1700 1700 4.4
8X3200 8 3200 100 1-3 3300 ≥15 750 11 290 3860 1700 1700 6
8X4000 8 4000 100 1-3 4100 ≥6 750 11 290 4640 1700 1700 8.9
10X2500 10 2500 100 1-3 2600 ≥12 750 11 320 3400 1800 1700 6.5
10X3200 10 3200 100 1-3 3300 ≥12 750 15 420 3850 1830 1900 8
10X4000 10 4000 100 1-3 4100 ≥12 750 15 420 4650 2100 2000 12
12X2500 12 2500 100 1-3 2600 ≥12 750 15 360 3285 1830 2390 8.5
12X3200 12 3200 100 1-3 3300 ≥12 750 18.5 500 3855 1830 2390 10
12X4000 12 4000 100 1-3 4100 ≥12 1000 18.5 500 4850 1830 2390 13.5
16X2500 16 2500 100 1-3 2600 ≥10 1000 22 360 3440 1940 2830 13
16X3200 16 3200 100 1-3 3300 ≥10 1000 22 500 4010 1940 2830 15
16X4000 16 4000 100 1-3 4100 ≥10 1000 22 500 5010 1980 2830 16.5
20X2500 20 2500 100 1-3.5 2600 ≥8 1000 37 540 3440 1980 2830 17
20X3200 20 3200 100 1-3.5 3300 ≥8 1000 37 800 4010 1900 2830 20
20X4000 20 4000 100 1-3.5 4100 ≥8 1000 37 800 4850 2600 2900 22
30X2500 30 2500 100 1-3.5 2600 ≥8 1000 37 800 3440 1900 2830 29
30X3200 30 3200 100 1-3.5 3300 ≥8 1000 37 800 4200 1900 3000 38
40X3200 40 2500 100 1-3.5 2600 ≥8 1000 37 800 3440 2000 3000 38
