hydraulic Ironworker Machine

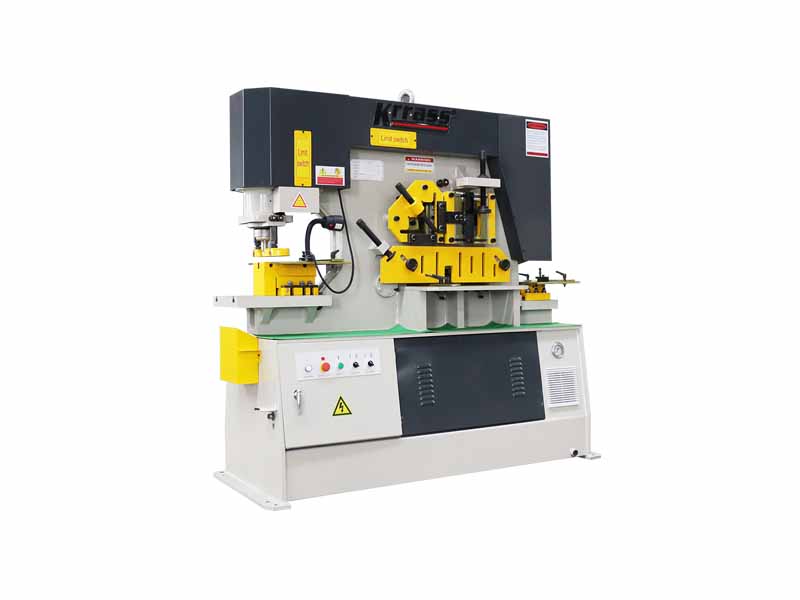

Q35Y Series Hydraulic Ironworker Machine

  • Punching Statiion
  • Angle steel cutting station
  • Proximate matter cutting station
  • Shearing plate station
  • Cutting Gap station
Inquiry
  • Description

Multi-functional Working Stations

A Station :Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.

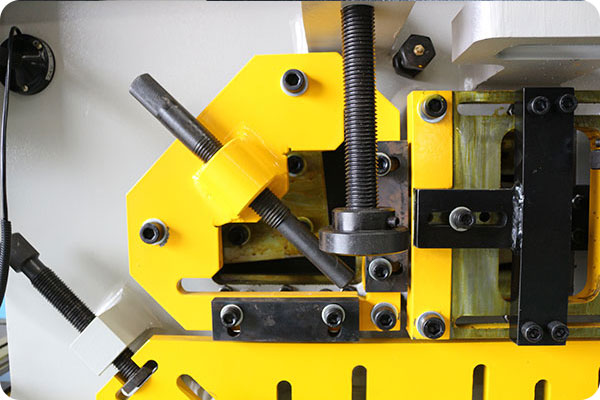

B Station :Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.
C Station :Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.

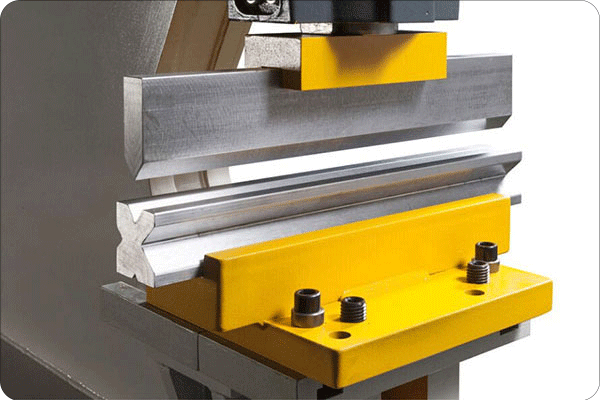

D Station : Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
E Station : Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.

5 Stations In Standard Configuration

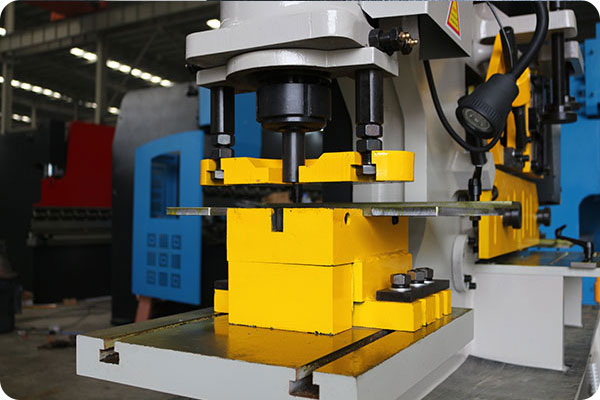

Punching station

All metal punching operations are processed by means of hydraulic power, thus giving the machine the ability to punch very efficiently and silently. The machine can either be used to punch thick metal or thin materials layered together. Punching is silent, powerful, and efficient. The waste materials come off together and in layers. The punching table consists of two parts: the first is the punching flange; the second is the holder. The holder is a device that prevents the material from coming back with the punch after cutting. There are different holders for different materials.

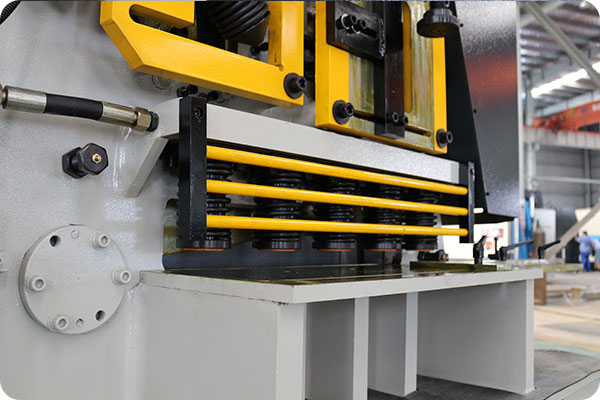

Flat bars shearing station

The metal shear station has been equipped with simple and sturdy fixing mechanisms that can be adjusted for any steel thickness depending on the cutting capacity of the machine. The shearing capacity can go up to 17.71 inches in the flat bar or the cutting of corner profiles. The shearing blades, built for mass production, can be used on both sides (the upper blade has 2 cutting edges, the lower blade has 4 cutting edges). This ensures a clean cut with minimal warping, from the full capacity down to a thickness of only 1/8 inch.

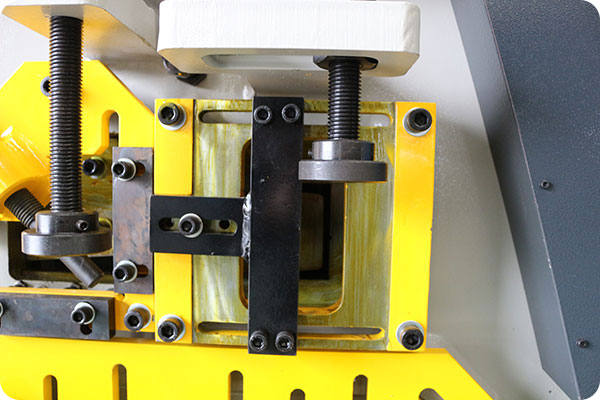

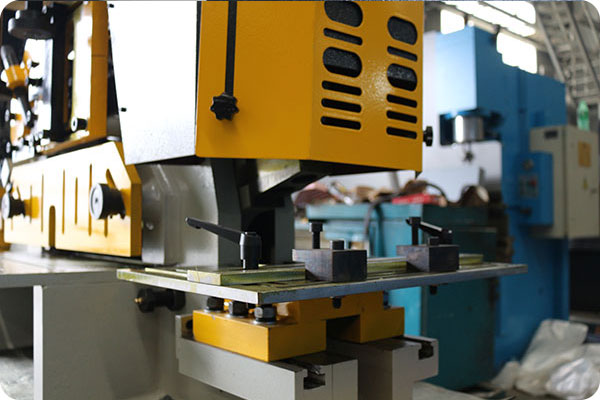

Bars cutting station

Standard machines are equipped with blades for cutting U-sections. Thanks to additional equipment, it is possible to cut I-section profiles and T-sections and round and square metal bars. The blades are held by efficient jaws that ensure the equipment can be arranged easily at the machine without any additional adjustment.

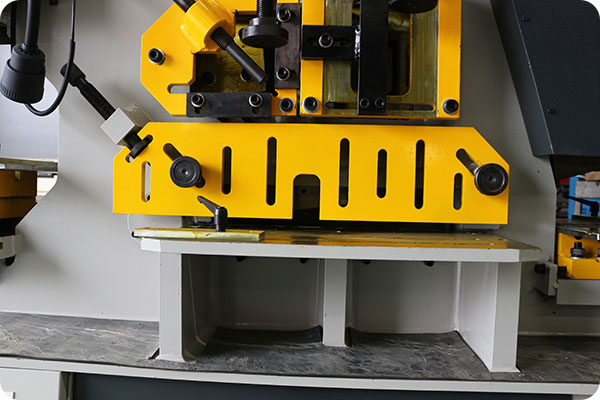

Notching station

High Adaptability:With QBH, QCS and other types of optical fiber interfaces, it can be adapted to various mainstream laser devices.Excellent Design:Optimized optical configuration, smooth and efficient air flow design significantly improve cutting quality and efficiency.

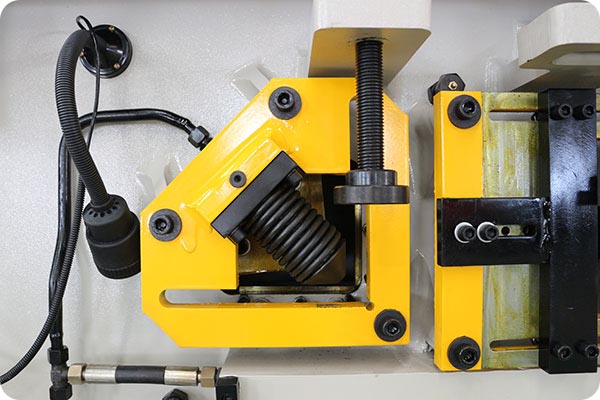

Angle shearing station

This station enables the cutting of large angles with a capacity ranging from 17 3/4 inches to 35 1/2 inches.



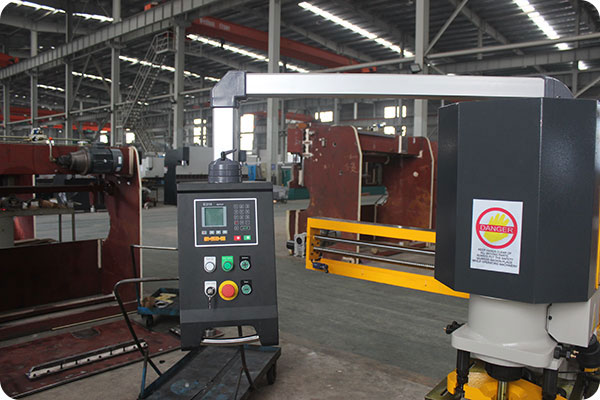

Optional Accessories

Angle steel,channel steel ,round steel automatic positioning shear

Shear plate automatic hydraulic clamping

Angle steel shear automatic clamping

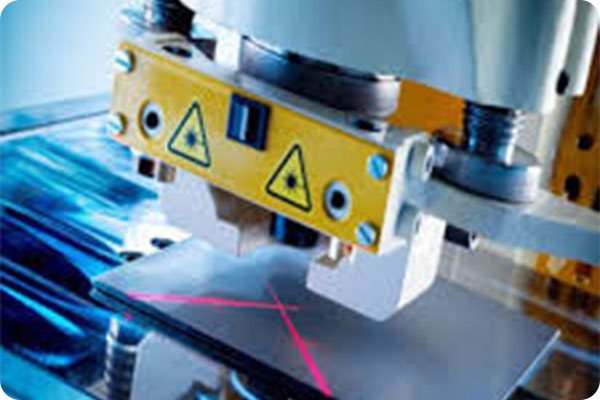

Laser positioning

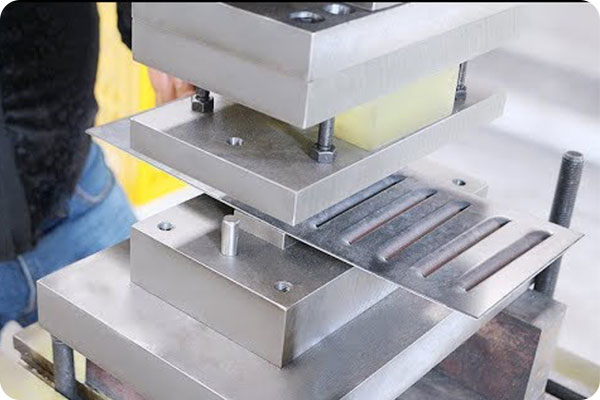

Louver punching

Bending

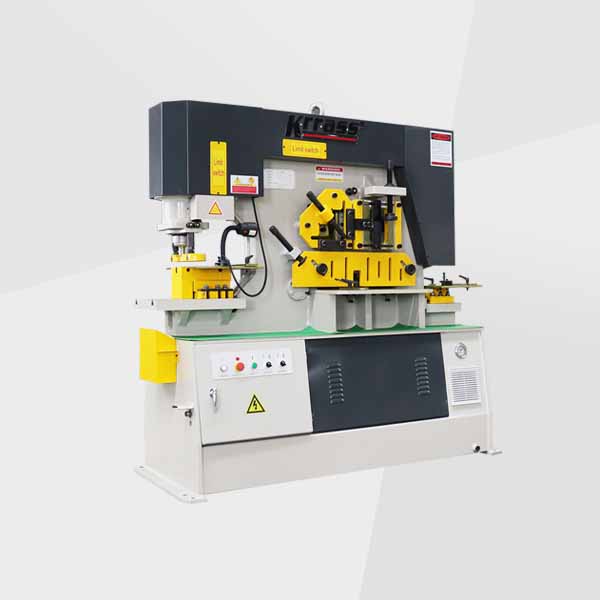

Hydraulic Ironworker Machine

The ironworker machine is divided into two types: hydraulic ironworker and mechanical ironworker. Since a hydraulic ironworker machine can be used for several different operations, it’s a wise and efficient way of saving both time and money. Because it’s a multipurpose machine with so many different uses, the hydraulic ironworker machine can be found in fabrication, manufacturing, and maintenance shops as well as trade schools.

Technical Parameter

Technical Specification Q35Y-12 Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50
Punching Pressure(T) 35T 60T 90T 120T 160T 200T 250T
Depth of throat(mm) 115 300 355 400 600 600s 600
Standard
Die
Punching Dia.X Max.Thickness mm 25X12 25X16 30X20 35X25 38X26 40X35 40X40
Dia.X Thickness mm 25X12 25X16 30X20 35X25 38X26 40X35 40X40
Max.Diameter mm 12 25 30 35 38 40 40
Travel mm 35 80 80 80 80 80 80
Working Travel mm X18 X20 X25 X25 X30 X35 X40
Throat Depth mm 115 300 355 400 600 600 600
Steel Bar Round mm 35 45 50 60 65 70 80
Square mm 30X30 40X40 50X50 50X50 55X55 60X60 65X65
Steel Angle Angle Size mm 86X86X8 125X125X12 140X140X12 160X1160X14 180X180X16 200X200X18 200X200X20
Cutting Angle ° 50X50X5 50X50X5 50X50X5 60X60X6 60X60X6 100X100X10 120X120X10
Angle Section mm 5.5 5.5 6.5 9 11.5 12 12
Slotting Thickness mm 100 126 160 210 280 300 320
Width mm 30 53 60 75 86 89 92
Depth mm / / / / / / /
Optional
Die
U-I Shaped Profile Length mm 100X100X8 125X125X12 140X140X12 160X160X14 180X180X16 160X160X14 180X180X16
T-shaped Profile mm 40X40X6 60X60X8 70X70X10 80X80X10 80X80X10 80X80X10 80X80X10
I-Beam mm 40X60X4 126X74X5 160X86X6 200X102X9 280X124X10.5 300X126X11 320X130X10
V-Bending mm 600 600 600 600 600 600 600
V-Bending Thickness mm 4 10 15 20 26 33 40
Voltage Kn 350 600 900 1200 1600 2000 2500
Motor Power kw 4 5.5 7.5 11 15 18.5 18.5
Weight Kg 1600 1900 2500 5200 6800 11000 14500
Outline Dimension(LXWXH) mm 950X950X1800 1640X730X1770 1860X800X1990 2355X960X2090 2680X1040X2300 2970X1240X2350 3000X1440X2450
