Hydraulic Guillotine Shearing Machine

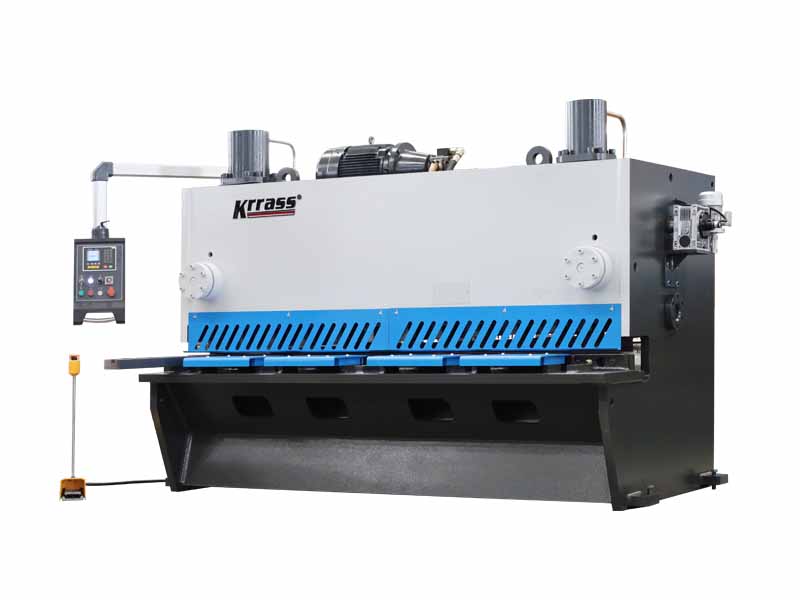

QC11K Hydraulic Guillotine Shearing Machine

Model:QC11K Series
Imported Controller:E21S,E200P
Capabilities:Max Thickness 40mm

Inquiry
  • Description

Main Features

  1. Streamlined design originated from EU ( European Union), using overall frame welding and annealing treatment.
  2. Germany Rexroth integrated hydraulic system, hydraulic drive, stable and reliable, integrated hydraulic system design, effectively reduce the hydraulic oil leakage problems.
  3. Hydraulic swing beam shear is one kind of equipment through swinging the upper blade to shear plate, smaller shear angle, reducing distortion, improving shearing quality.
  4. Motor adjusts the Backgauge through high precision ball screw, frequency convertor controls the position to prevent horizontal swinging. Light align device, convenient for manual operation, pressure cylinder with built-in spring mechanism and completed with special material gasket under bottom end in case generating imprint on aluminum or other sensitive materials.
  5. Made by high-quality alloy tool steel, the machine can meet the impacting load and high wear resistance requirements when working. Light and practical suspension arm, reference man-machine engineering design, easy to operate the numerical control interface, high precision and more comfortable.
  6. The worktable adopts the rolling steel ball to reduce the frictional resistance to protect the surface of workpieces, the novel protective devices all in line with the safety specifications, protects the operator’s personal safety, ingenious design, and petty material cutting can be done easily.
  7. Vertical alignment of the front bracket and front positioning device ensure the cutting accuracy, easy operation, practical and efficient.
  8. Rapid adjustment mechanism of Blade clearance, easy and quick stepless adjustment.

Standard Accessories

  • ESTUN E21S CNC controller
  • Backgauge X-axis electric control
  • DELTA frequency converter
  • Controller suspension arm and front material supporter
  • HIWIN ball screw and polished bar, control accuracy 0.05mm
  • Germany EMB tube connector
  • Germany Bosch Rexroth integrated hydraulic valve
  • Germany Siemens main motor

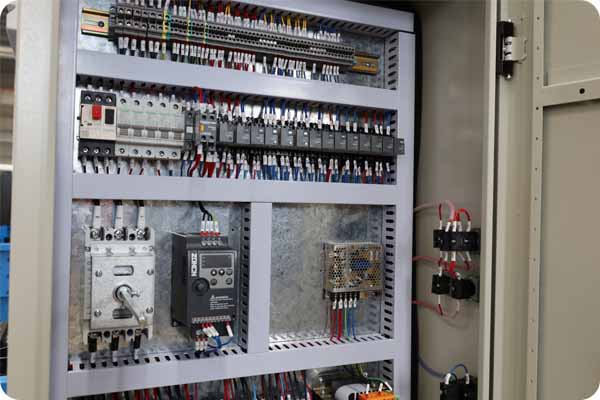

  • France Schneider electrics
  • Hydraulic and electrical overload protection
  • Light align
  • Blade materials (6CrW2Si)
  • South Korea KACON petal switch

Schneider Electrics - France

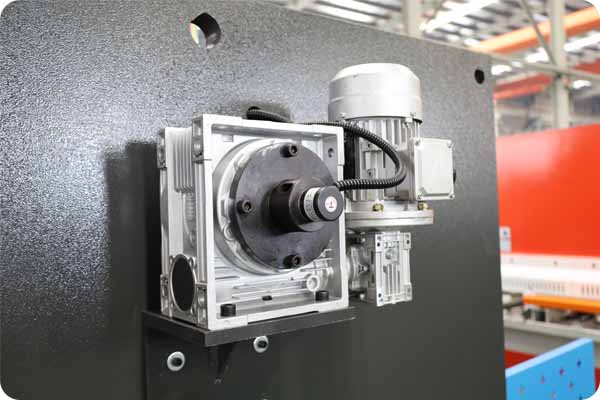

Electric gap adjustment

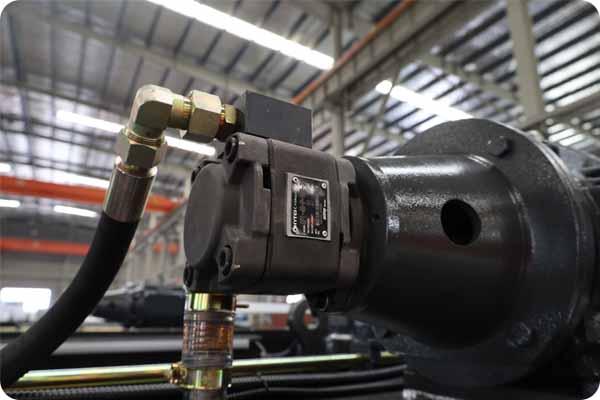

Sunny Oil Pump-GermanyUSA

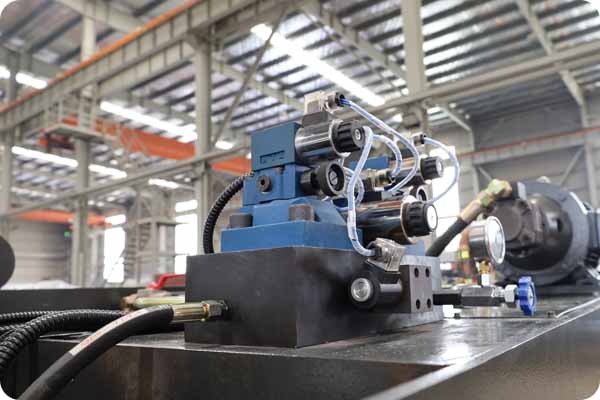

Bosch Rexroth Valve -Germany

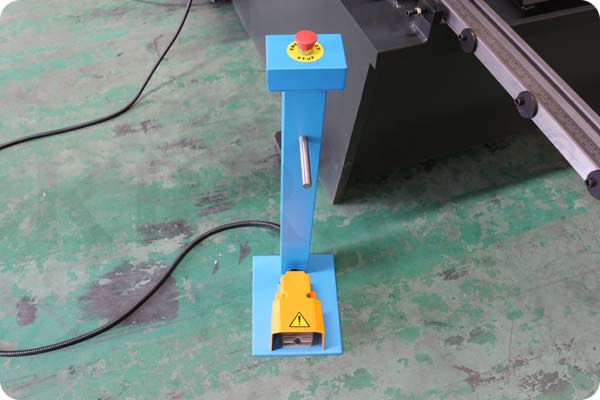

KRRASS Pedal switch

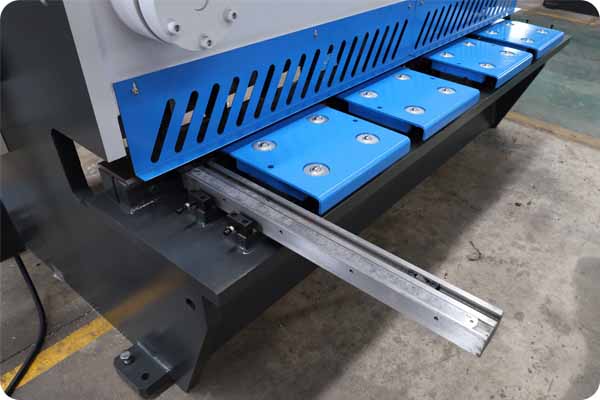

Working Table

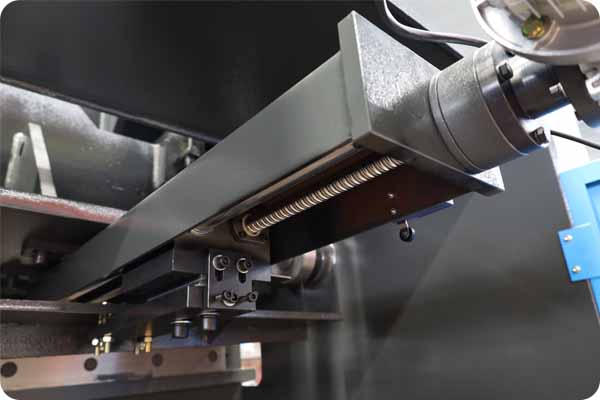

Backgauge use Ball Scrwe

Back safety net

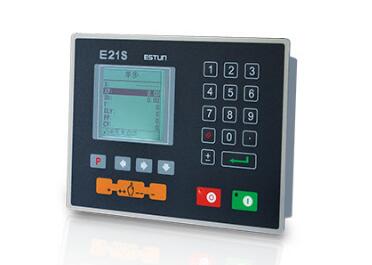

Estun E21S Controller For Hydraulic Shears

  • Wide, bright, colorful to program easily
  • Easy control pages
  • Bright LCD screen
  • Back / front gauge control
  • Retract function
  • Stroke length limitation
  • Manual movement of all axes
  • Sheet thickness measurement
  • Contextual help and warning pup-up
  • Complete part programming in seconds

Safety Standard

  • Safety standards ( 2006/42/EC )

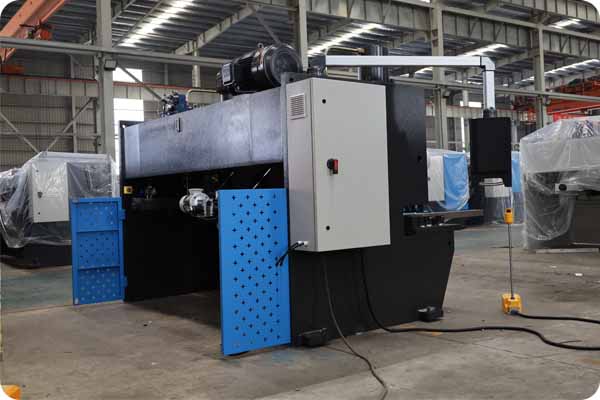

  • The electrical cabinet and the front safeguard door open to power off
  • Domestic pedal switch (safety grade 4)
  • Rear metal safeguard rail, CE standard
  • Safety relay monitors pedal switch, safety protection

QC11K Hydraulic Guillotine Shears

  • The host adopts the structure of QC11K series hydraulic guillotine shears;
  • The numerical control system selects the economical numerical contral system dedicated to the shearing machine;
  • The back gauge screw use imported ball screw+linear guide.

Technical Parameter

Type Max Thickness
（mm）		 Cutting Length (mm) Throat Depth (mm) Shearing Angle (°) Blade Length (mm) Travel
(mm)		 Speed
(mm/sec)		 Motor Power
(kw)		 Weight
(T)		 L*W*H
(mm)
4x2500 4 2500 100 1°30’ 2600 600 180 5.5 3800 3040*1610*1620
4x3200 4 3200 100 1°30’ 3300 600 180 5.5 5000 3840*1610*1620
4x4000 4 4000 100 1°30’ 4100 600 180 5.5 6500 4600*1700*1700
4x6000 4 6000 100 1°30’ 6100 600 180 11 11000 6460*2100*3200
6x2500 6 2500 145 1°30’ 2600 600 180 7.5 5000 3040*1610*1620
6x3200 6 3200 145 1°30’ 3300 600 180 7.5 6000 3840*1610*1620
6x4000 6 4000 145 1°30’ 4100 600 180 7.5 8000 4620*1750*1700
6x5000 6 5000 145 1°30’ 5100 600 180 7.5 10500 5400*1750*1700
6x6000 6 6000 145 1°30’ 6100 600 180 11 16500 6480*2100*2300
8x2500 8 2500 300 1°30’ 2600 600 180 7.5 6000 3040*1700*1700
8x3200 8 3200 300 1°30’ 3300 600 180 7.5 7200 3860*1700*1700
8x4000 8 4000 300 1°30’ 4100 600 180 7.5 8800 4640*1700*1700
8x5000 8 5000 300 1°30’ 5100 600 180 7.5 11500 5400*2400*2000
8x6000 8 6000 300 1°30’ 6100 600 180 11 18000 6480*2100*2350
10x2500 10 2500 300 1°30’ 2600 600 180 11 7300 3040*1700*1700
10x3200 10 3200 300 1°30’ 3300 600 180 11 8000 3860*1700*1700
10x4000 10 4000 300 1°30’ 4100 600 180 11 12000 4650*2100*2000
10x6000 10 6000 300 2° 6100 600 180 15 24000 6500*2100*2300
12x2500 12 2500 300 2° 2600 600 180 18.5 9000 3140*2150*2000
12x3200 12 3200 300 2° 3300 600 180 18.5 10800 3880*2150*2000
12x4000 12 4000 300 2° 4100 600 180 18.5 13000 4680*2150*2000
12x5000 12 5000 300 2° 5100 600 180 18.5 16000 5900*2150*2000
12x6000 12 6000 300 2° 6100 600 180 18.5 29000 6900*2600*2700
12x8000 12 8000 300 2° 8100 600 180 18.5 46500 9000*3500*3500
16x2500 16 2500 320 2°30’ 2600 600 180 18.5 11000 3140*2150*2000
16x3200 16 3200 320 2°30’ 3300 600 180 18.5 13000 3880*2150*2000
16x4000 16 4000 320 2°30’ 4100 600 180 18.5 16300 4650*2150*2200
16x5000 16 5000 320 2°30’ 5100 800 180 18.5 20000 5900*2600*2700
16x6000 16 6000 320 2°30’ 6100 800 180 22 36000 6900*2700*2700
20x2500 20 2500 320 3° 2600 800 180 22 15500 3440*2300*2500
20x3200 20 3200 320 3° 3300 800 180 22 18000 4150*2350*2700
20x4000 20 4000 320 3° 4100 1000 180 22 21000 4850*2350*2700
25x2500 25 2500 320 3° 2600 1000 180 37 19000 3200*2700*2900
25x3200 25 3200 320 3° 3300 1000 180 37 23000 4200*2700*2900
25x4000 25 4000 320 3° 4100 1000 180 37 27000 3850*2700*2900
30x2500 30 2500 320 3° 2600 1000 180 37 23500 3300*2900*2900
30x3200 30 3200 320 3° 3300 1000 180 37 27500 4200*2900*2900
