High Configuration Fiber Laser Cutting Machine

High Configuration Fiber Laser Cutting Machine

The machine can be produced in the following working sheet sizes:
1500×4000 mm
2000x4000mm
2000X6000MM
2000X8000MM
Laser Power:1000W-6000W
Selection of different brands of laser souce :IPG,Nlight,Racyus,Max
The fiber laser has a module structure. For example, if you want to change resonator type after a certain period, you can just do it by adding new modules.

Inquiry
  • Description

Technical Parameter

3000*1500mm (optional)

Processing area

1000w-6000w

Laser power

1100m/min

Complex-axis running speed

1.5G

Max. acc. speed

±0.05mm/m

Positioning accuracy

±0.03mm

Reposition accuracy

4300kg

Whole machine weight

4850*2750*1700mm

Machine dimensions

High Precision,High Speed

INTELLIGENT DUAL DRIVE

The adoption of gantry type with dual drive servo motor system can effectively ensure the high speed, high precision and high stability of the whole machine during cutting.

HIGH ACCURACY

The core transmission parts of the machine tool such as speed reducer, gear and rack are all imported from Taiwan Hiwin. Choosing high-end Alpha brand can ensure the high-speed cutting accuracy of the equipment for a long time.

INTEGRATED GAS CIRCUIT

Advanced integrated pneumatic control system, whole set of imported pneumatic components; connect different auxiliary gases at the same time, flexible selection, automatic switching.

Standard Accessories

  • Laser Head : Raytools Manual focus
  • Servo Motor : Fuji Japan
  • Servo driver : Fuji Japan
  • Slideway : Hiwin TAIWAN
  • Rack : YYC TAIWAN
  • Gear :YYC TAIWAN
  • Reducer : Shimpo Japan
  • Control system : Cypcut FSCUT 1000
  • Proportional valve : Japan SMC
  • Electrical : France Schneide

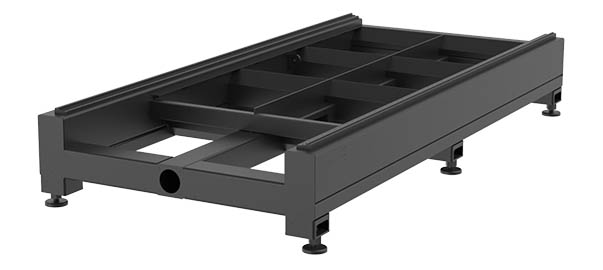

Plate Welded Bed Machine Body

The metal body on this cutter has undergone a 600°C heat treatment, and is cooled inside the furnace for 24 hours. After this is complete, it is processed using a plano-milling machine and welded using carbon dioxide. This ensures it has a high strength and a 20 year service life.

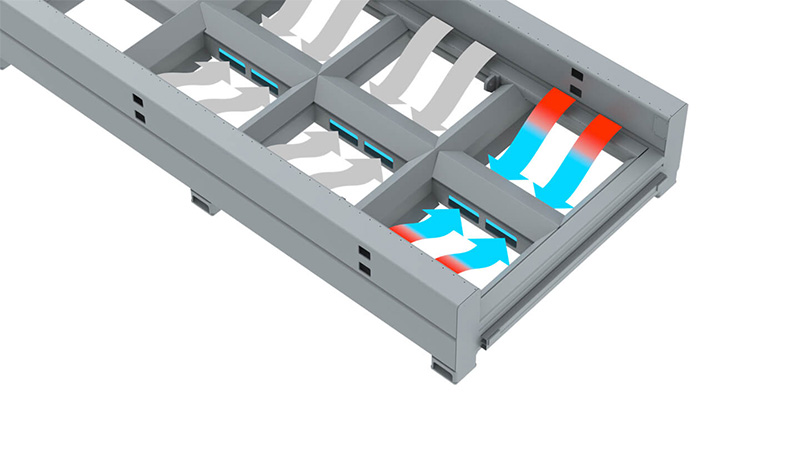

Partitioning Blowing Dust Remove System

The designs of small grid partitioning blowing, rotating butterfly valve type damper and large-diameter exhaust duct to achieve good ventilation and almost completely smoke-free effect. The opening and closing process during the movement of the machine tool is almost free of any noise.

Cypcut FSCUT2000 Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation.

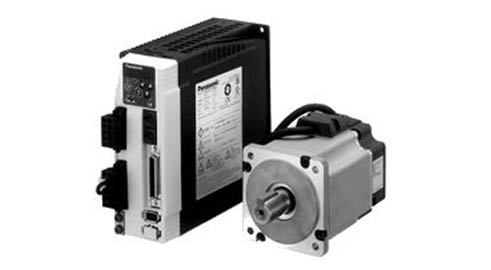

Panasonic Servo Motor

The electric and drive systems provided by Japan Panasonic offer customers a faster rotation speed and better stability.

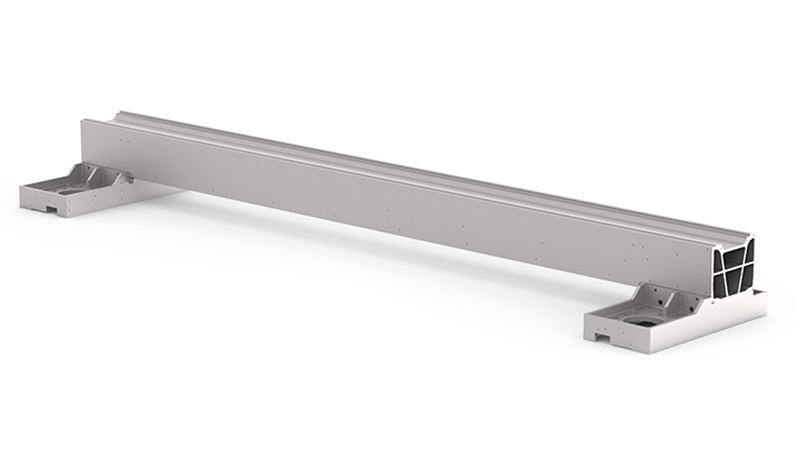

The 4th Generation Aviation Aluminum Beam

Select 6-series aviation aluminum alloy, which is the material for manufacturing aviation flight devices. It is light in weight and has good dynamic performance of beams.

Raytools Auto-Focusing Laser Cutting Head

• Optimized optical configuration and smooth and efficient airflow design.
• Auto focus ranges +9~-14mm, accuracy is 0.05mm.
• Can be equipped with the D30 lens group, the maximum fiber input power is 3.3KW.
• Maximum acceleration of focus lens drive 10m/s2, maximum speed 10m/min.
• Adds an upper protective lens to the collimator, minimizing the risk of contamination of the collimator.
• Drawer-type of lens mount, quick and easy access to the cover glass.
• With a variety of optical interfaces, can be adapted with a variety of fiber lasers.

Cutting Samples

Working Vedio
