Fiber Laser Cutting Machine,Tube Fiber Laser Cutter for Sale

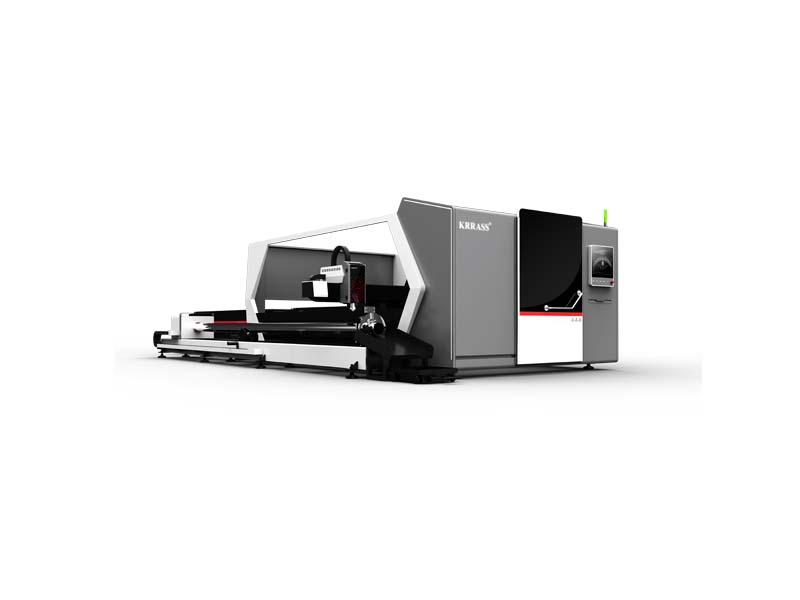

Tube and Plate Fiber Laser Cutting Machine

Exchangable Table Metal Sheet and Tube Laser Cutting Machine

The machine can be produced in the following working sheet sizes:
1500×4000 mm
2000x4000mm
2000X6000MM
2000X8000MM
Pipe size selection
Minimum Diameter:20mm
Maximum Diameter：170mm/220mm
Lenght:3000mm/6000mm
Laser Power:1000W-3000W

Inquiry

Description

Technical Parameter

3000*1500mm (optional)

Processing area

1000w-6000w

Laser power

140m/min

Complex-axis running speed

1.5G

Max. acc. speed

±0.05mm/m

Positioning accuracy

±0.03mm

Reposition accuracy

1200kg

Whole machine weight

8600×2900×2260mm

Machine dimensions

Standard Accessories

Laser Head : Raytools Manual focus
Servo Motor : Fuji Japan
Servo driver : Fuji Japan
Slideway : Hiwin TAIWAN
Rack : YYC TAIWAN

Gear :YYC TAIWAN
Reducer : Shimpo Japan
Control system : Cypcut FSCUT 2000
Proportional valve : Japan SMC
Electrical : France Schneider

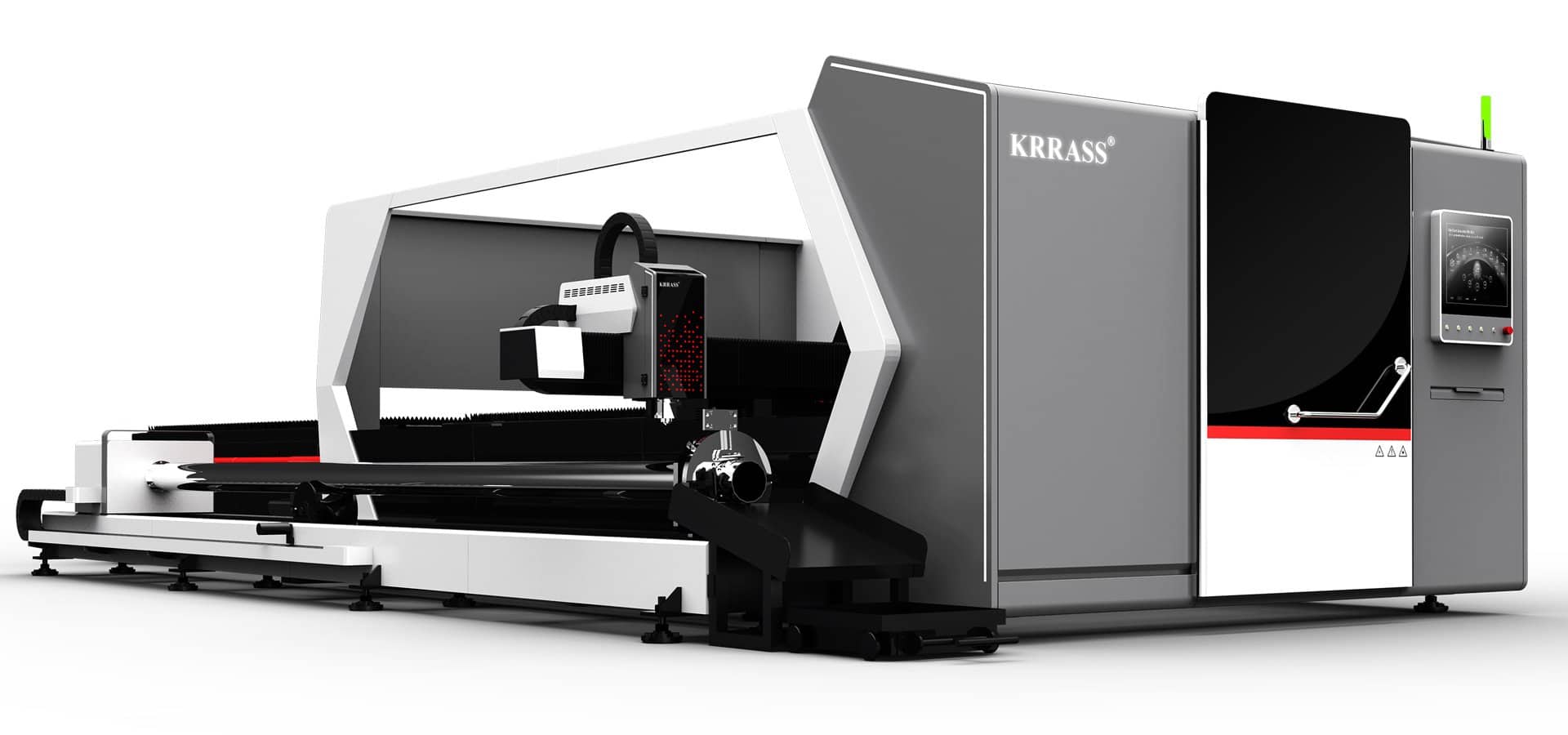

Dual Drive Exchange Platform

Upper and lower exchangeable table, shorten the standby time, the drawer-type material collecting device allows more convenient collection, effectively improve the efficiency of more than 50%.Equipped with an interchangeable table, the 3015T-22Qfiber laser cutting machine can process both metal sheets and tubes.

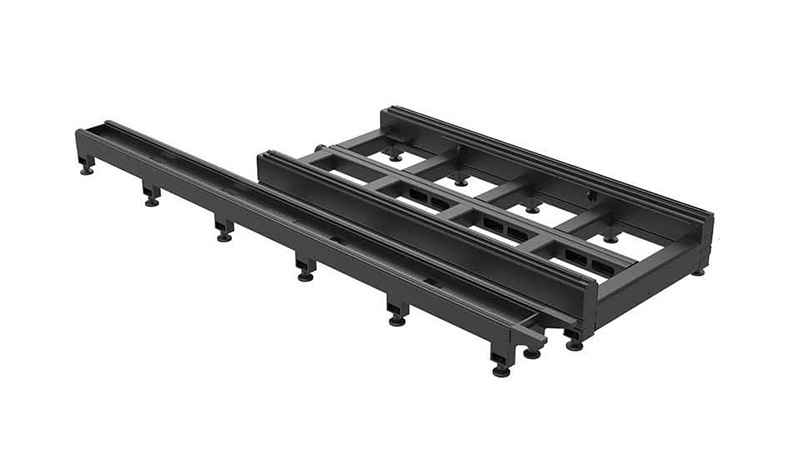

Machine Body

Equipped with a high-low exchange platform, this laser cutting machine operates more efficiency due to the short exchange period of only 15 seconds. The metal bed on this cutter has undergone a heat treatment of 600°C and is cooled inside the furnace afterwards for 24 hours. After it has cooled, it is processed using a plano milling machine and welded using carbon dioxide. This gives the cutter its strength and service life of 20 years.

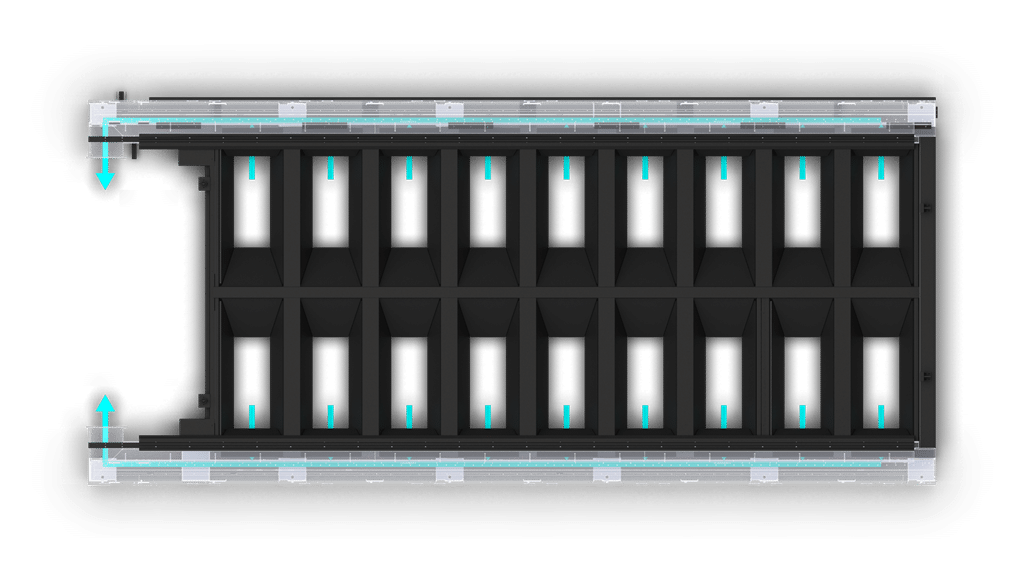

Professional Ventilation System, Multiple Zoning Strong Ventilation

The extraction system is divided into left and right zones, with butterfly valve general controlling concentrated suction, and large-diameter air extraction pipes on both sides to ensure smooth smoke exhausting.

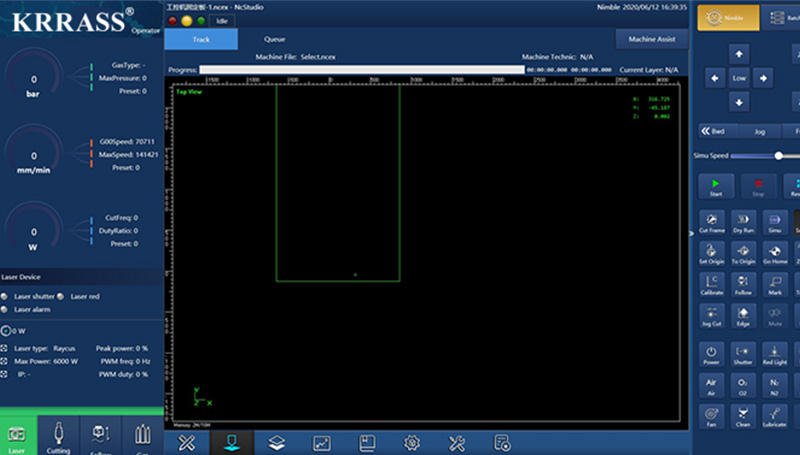

Cypcut FSCUT2000 Plate Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation.

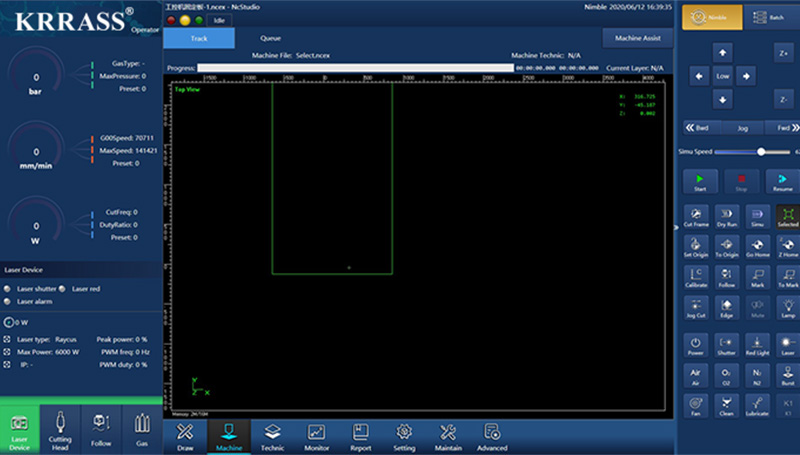

Cypcut FSCUT3000S Tube Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation.

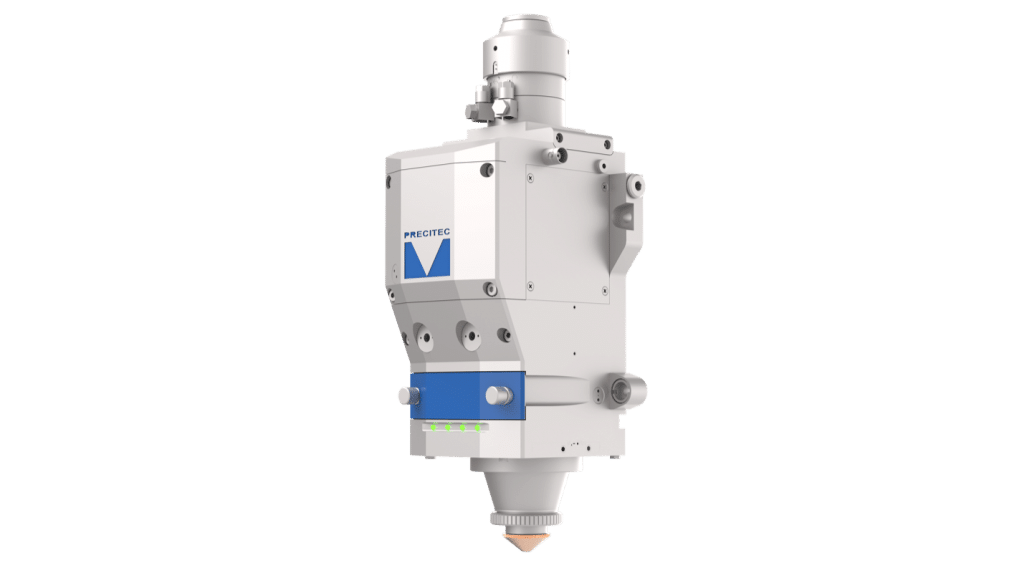

Imported High Power Auto Focus Cutting Head

Germany Precitec high-power cutting head, automatic focus adjustment, suitable for a variety of focal length; unnoticeable perforation, flexible cutting, high-speed leapfrog, high cutting efficiency. Real time status monitoring and intelligent malfunction warning.

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

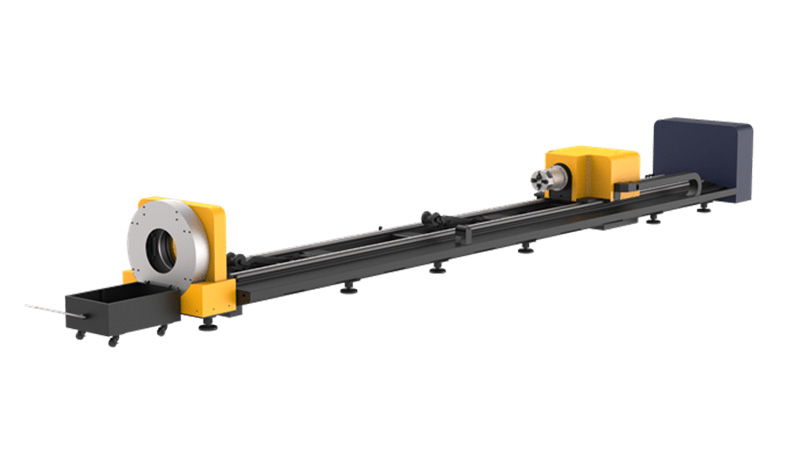

Full Automatic Double Pneumatic Chuck

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

WIFI Remote Intelligent Assistance

Global real-time feedback. Providing real-time fault analysis and troubleshooting.

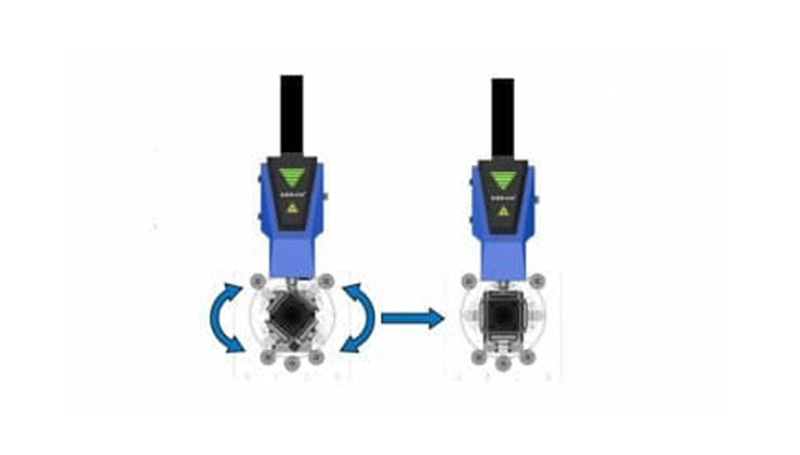

Automatic Drift Correction Function

The convenience of operation: automatic drift correction function, automatic tube center finding function, very smart, convenient and practical.

Cutting Samples

Working Vedio
