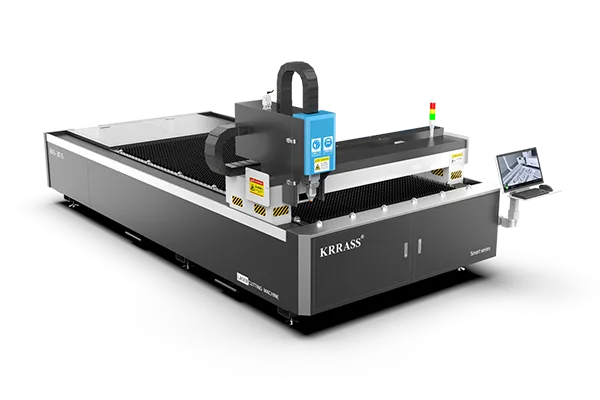

High Configuration Fiber Laser Cutting Machine

A Series Fiber Laser Cutting Machine

The machine can be produced in the following working sheet sizes:
1500×4000 mm
2000x4000mm
Laser Power:1000W-2000W
Selection of different brands of laser souce :IPG,Nlight,Racyus,Max
The laser beam is relayed to the cutting head through fiber optic cable without any loss and thus, provides a superior cutting accuracy and quality. With low power consumption, it is user-friendly as well as environment efficient

Inquiry
  • Description

Technical Parameter

3000*1500mm (optional)

Processing area

1000w-2000w

Laser power

110m/min

Complex-axis running speed

1.5G

Max. acc. speed

±0.05mm/m

Positioning accuracy

±0.03mm

Reposition accuracy

3500kg

Whole machine weight

4850*2750*1700mm

Machine dimensions

Standard Accessories

  • Laser Head : Raytools Manual focus
  • Servo Motor : Fuji Japan
  • Servo driver : Fuji Japan
  • Slideway : Hiwin TAIWAN
  • Rack : YYC TAIWAN
  • Gear :YYC TAIWAN
  • Reducer : Shimpo Japan
  • Control system : Cypcut FSCUT 1000
  • Proportional valve : Japan SMC
  • Electrical : France Schneider

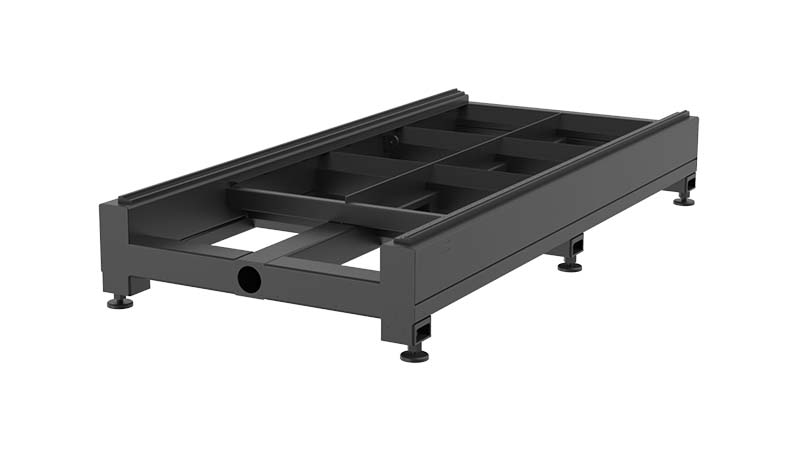

Plate welded bed machine body

The metal body on this cutter has undergone a 600°C heat treatment, and is cooled inside the furnace for 24 hours. After this is complete, it is processed using a plano-milling machine and welded using carbon dioxide. This ensures it has a high strength and a 20 year service life.

Cypcut FSCUT 1000 Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation.

Raytools Manual Cutting Head

Optimized optical configuration, smooth and efficient airflow design, significantly improve the cutting quality and efficiency, cost-effective.

The electric and drive systems provided by Japan Fuji offer customers a faster rotation speed and better stability.

Fuji Servo Motor

The electric and drive systems provided by Japan Panasonic offer customers a faster rotation speed and better stability.

Cutting Samples

Working Vedio
