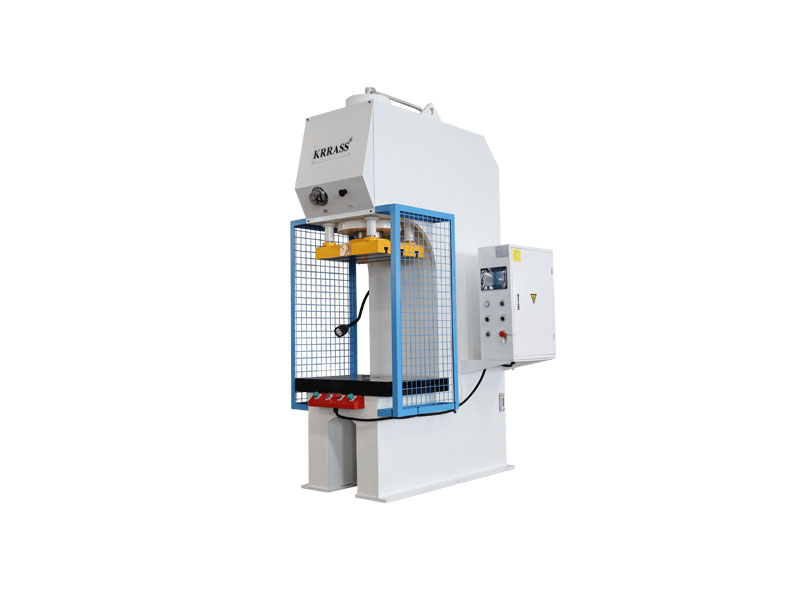

Hydraulic Press,C frame Hydraulic Press

Model:Y41B
Imported Controller:PLC
Capabilities:25Ton ton 250Ton

Computer optimized structure design: single-arm C-frame, high rigidity, simple structure, easy use.
Integrated welding, the structure and all welding parts are treated by tempering to eliminate internal stress.
Two-way cartridge valve integrated system: long service life, reliable, low hydraulic impact, and reduce the pipeline leaking points.
The hydraulic system is equipped with pressure pre-relief device to minimize hydraulic shock power.

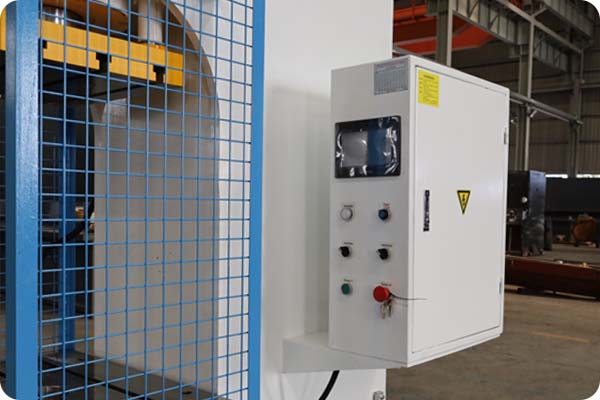

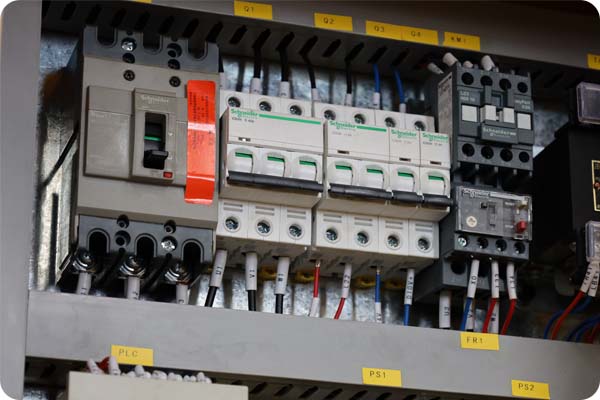

Independent electric control system: reliable, intuitive and convenient maintenance.
Button centralized control: manual or semi-auto adjustment.
Slider working pressure, no-loading fast down speed and slow pressing travel range are adjustable according to technology requirements.
With hands-on control and programmable logic control, upper slider equipped with lubrication-free sliding device.

Model		Unit	Y41B-4T	Y41B-6.3T	Y41B-10T	Y41B-16T	Y41B-25T	Y41B-40T	Y41B-63T	Y41B-100T	Y41B-160T	Y41B-200T	Y41B-250T	Y41B-315T
Nominal force		KN	40	63	100	160	250	400	630	1000	1600	2000	2500	3150
Maximum working pressure of liquid		Mpa	8	8	8	13	20	23	25	26	25	25	25	25
Maximum opening height		mm	390	450	500	550	600	700	800	800	900	900	900	900
Maximum stroke of slider		mm	200	250	300	350	350	400	500	500	500	500	500	500
Slide down speed		mm/s	45	45	45	45	45	49	35	25	20	20	20	20
Slider return speed		mm/s	75	85	75	75	100	85	68	54	59	70	70	70
Deep Throat		mm	160	220	220	280	280	300	320	320	325	325	325	325
Working desk size	F.B.	mm	420	420	480	480	550	600	600	600	600	600	600	800
Working desk size	L.R.	mm	460	460	550	550	700	800	800	1200	1200	1200	1200	1200
Height of working platform from ground		mm	700	700	700	700	700	700	700	700	700	800	800	900
Blanking aperture		mm	70	80	80	80	80	100	120	120	100	200	200	200
Motor Power		KW	2.2	3	4	4	5.5	5.5	5.5	7.5	11	15	18.5	22
Machine size	F.B.	mm	1080	1080	1220	1280	1370	1570	1655	1630	1630	1767	1767	1767
	L.R.	mm	620	650	730	755	805	850	875	2000	2000	2000	2000	2000
	Height above ground	mm	1725	1900	1990	2200	2250	2650	2650	1960	1960	2500	2500	2500
Total weight (approximately)		Kg	750	1000	1250	1700	2300	2800	4200	4800	9500	14000	15000	18000
